Mine Index Number: 3969
| Company Name:
|
New Watson Coal Company
|
| Mine Name:
|
McVey No. 1 Mine
|
| Start Date:
|
1921
|
End Date:
|
December 1946
|
| Type of Mine:
|
Underground
|
| Total acres shown:
|
30
|
| Acres after map date:
|
1
|
General Area of mining acres shown:
|
|
|
|
Shaft, Slope, Drift or Tipple Location(s)
| Type
|
County
|
Township-Range
|
Section
|
Part Section
|
| Main slope
|
Williamson
|
8S 2E
|
32
|
SW SW SW
|
| Air shaft
|
Williamson
|
8S 2E
|
32
|
SW SW SW
|
| Air shaft
|
Williamson
|
8S 2E
|
32
|
SE SW SW
|
Geology
Geological Problems Reported
Production
| Company
|
Mine Name
|
Date
|
Production (tons)
|
|
|
|
|
|
| Total Production: 377,449
|
Production Notes
Coal Report production (if available)
Sources of Data
| Company, 4103.W52 i5.1-48
|
8-4-1946
|
1:1200
|
1:1200
|
Not final
|
| Microfilm, document 353081
|
9-10-1939
|
1:1200
|
1:2317
|
Not final
|
Annotated Bibliography (Data source - brief description of information)
| Coal Reports - Production, ownership, years of operation, mining method, seam, depth, thickness (Springfield).
|
| Directory of Illinois Coal Mines (Williamson County) - Mine names, mine index, ownership, years of operation.
|
| Mine notes (Williamson County) - Mine type, slope location, seam, depth, thickness (Herrin).
|
| Company map, ISGS map library, 4103.W52 i5.1-48 - Slope & shaft locations, mine outline (Herrin Coal), mining method.
|
| Microfilm, document 353081, reel 03141, frames 276 & 277 - Mine outline (Springfield Coal), mining method, air shaft location.
|
Mine Notes
Mine Images
 These files may not be true to scale and are not georgistered.
|
Map Type:
|

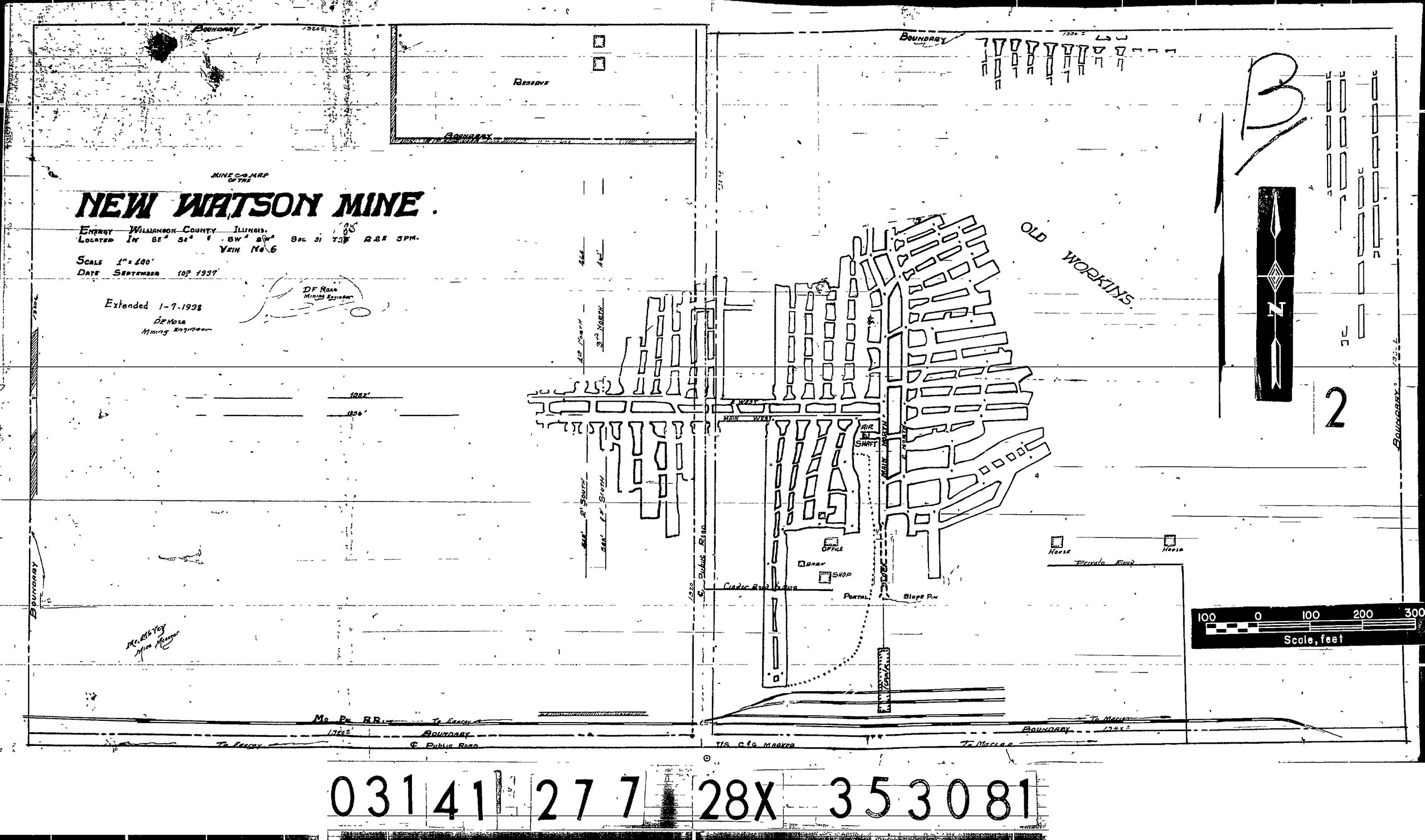

Microfilm
|
| Map ID:
|
353081 3141 278, 28x
|
| Company:
|
New Watson Coal Company
|
| Mine Name:
|
|
| Caption:
|
|
| Map Date:
|
07/07/1944
|
| Map Status:
|
Not Final
|
| Image Credit:
|
|
| Note:
|
|
| More Info:
|
|
| Full Res Download:These files are true to scale and most are georegistered for gis software. These files may be a very large (>1GB) download!
|
https://wikiimage.isgs.illinois.edu/ilmines/williamson/m3969.zip
|
 These files may not be true to scale and are not georgistered.
|
Map Type:
|

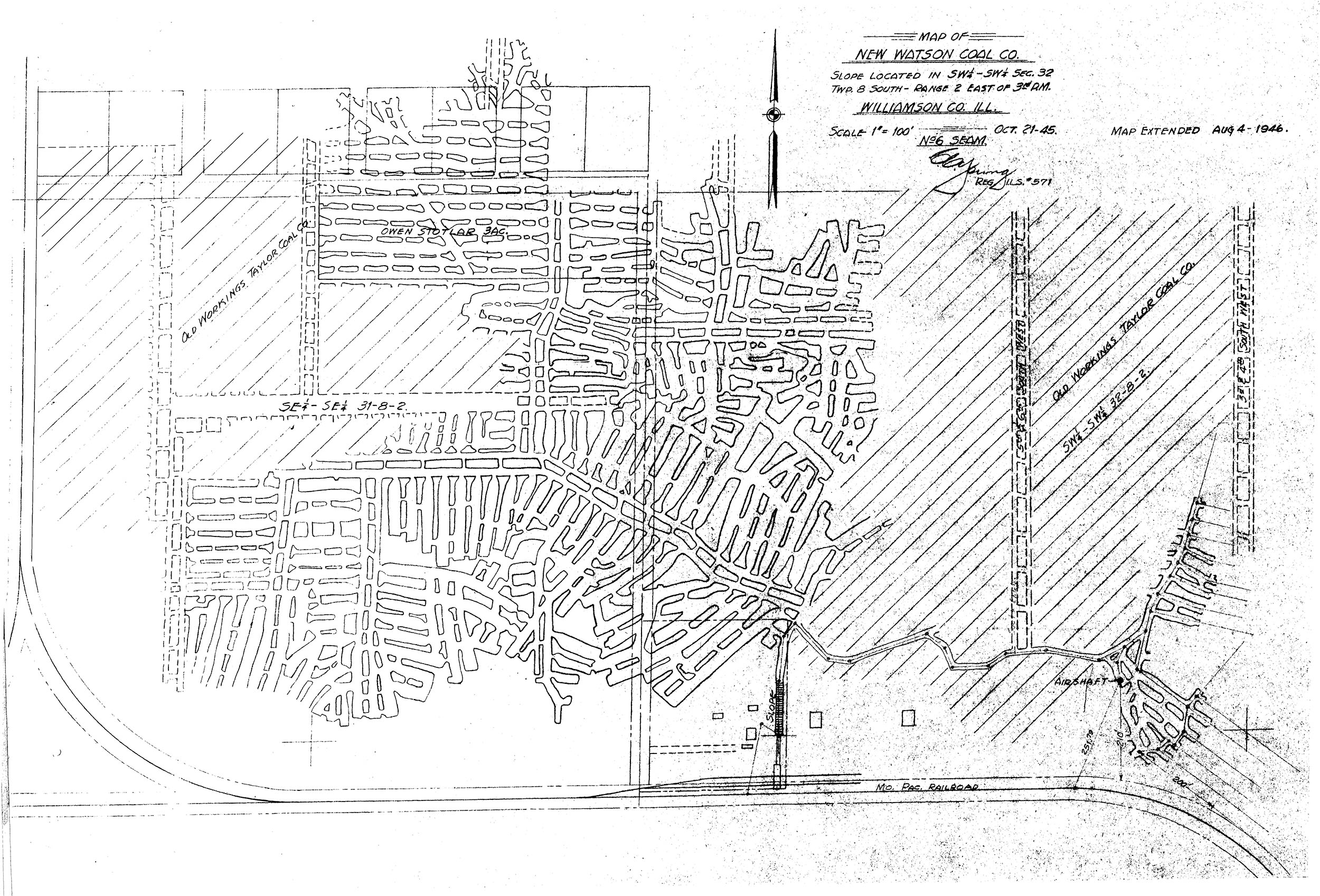

Company
|
| Map ID:
|
4103.w52 i5.1-48
|
| Company:
|
New Watson Coal Company
|
| Mine Name:
|
|
| Caption:
|
|
| Map Date:
|
08/04/1946
|
| Map Status:
|
Not Final
|
| Image Credit:
|
|
| Note:
|
|
| More Info:
|
|
| Full Res Download:These files are true to scale and most are georegistered for gis software. These files may be a very large (>1GB) download!
|
https://wikiimage.isgs.illinois.edu/ilmines/williamson/m3969.zip
|
Photographs
Notes
- ↑ Idle 1923
- ↑ Reopened abandoned mine; changed ownership in 1944, but operated under the same name
- ↑ Idle 1939 & 1940
- ↑ Reopened abandoned mine; changed ownership in 1944, but operated under the same name
- ↑ Idle 1939 & 1940
- ↑ Production after map date
