Mine Index Number: 7386
Accessible description: Mine Name and Data Summary
| Company Name:
|
Frees Coal Company
|
| Mine Name:
|
Freese Mine
|
| Start Date:
|
1905
|
End Date:
|
1921
|
| Type of Mine:
|
Underground
|
| Total acres shown:
|
19
|
| Acres after map date:
|
|
General Area of mining acres shown:
|
|
|
The mine was later partially surface mined by River King Pit No. 6 Mine (mine index 0934). The mine is larger than expected for the reported production, which indicates about 10 acres would have been mined.
|
Shaft, Slope, Drift or Tipple Location(s)
| Type
|
County
|
Township-Range
|
Section
|
Part Section
|
| Shaft Type |
County |
Township-Range |
Section |
Part Section
|
| Main shaft
|
St. Clair
|
3S 6W
|
28
|
SW NW SE
|
| Shaft Type |
County |
Township-Range |
Section |
Part Section
|
| Escape shaft
|
St. Clair
|
3S 6W
|
28
|
SW NW SE
|
Geology
| Seam |
Depth (ft) |
Thickness Min |
Thickness max |
Thickness Ave. |
Mining Method
|
| Herrin
|
60-67
|
|
|
6.0-7.0
|
RPB
|
Geological Problems Reported
The source map indicates that a roof fall blocked access to the southeastern part of the mine.
Production
| Company
|
Mine Name
|
Date
|
Production (tons)
|
| Company |
Mine Name |
Date |
Production (tons)
|
|
|
|
|
|
| Total Production: 47,659
|
Production Notes
Coal Report production (if available)
Sources of Data
| Source Map |
Map Date |
Original Scale |
Digitized Scale |
Map Type
|
| Microfilm, document 351147
|
1-14-1921
|
1:1200
|
1:2151
|
Final
|
| Bibliography
|
| Coal Reports - Production, ownership, years of operation, seam, depth, thickness.
|
| Bibliography
|
| Directory of Illinois Coal Mines (St. Clair County) - Mine names, mine index, ownership, years of operation.
|
| Bibliography
|
| Microfilm map, document 351147, reel 03134, frame 287 - Shaft locations, mine outline, mining method.
|
Mine Notes
Mine Images

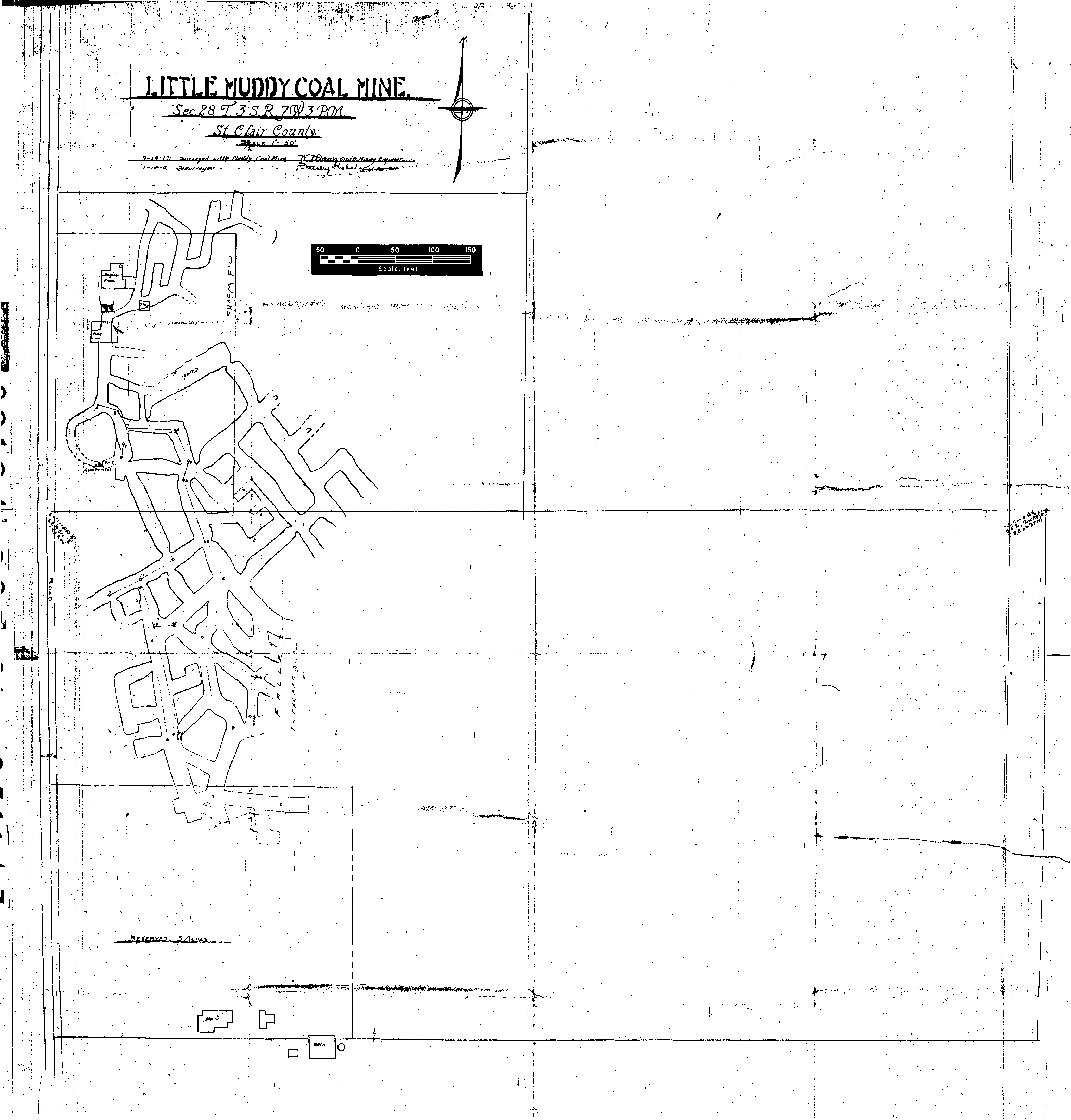

Mine Map: 351147
 These files may not be true to scale and are not georgistered.
|
Map Type:
|
Microfilm
|
| Map ID:
|
351147
|
| Company:
|
Little Muddy Coal Company
|
| Mine Name:
|
Little Muddy
|
| Caption:
|
|
| Map Date:
|
01-14-1921
|
| Map Status:
|
Final
|
| Image Credit:
|
|
| Note:
|
|
| More Info:
|
M7386
|
| Full Res Download:These files are true to scale and most are georegistered for gis software. These files may be a very large (>1GB) download!
|
https://wikiimage.isgs.illinois.edu/ilmines/st clair/m7386.zip
|
