Mine Index 1056 Sunrise Coal, LLC, Oaktown Fuels No. 2 Mine

Disclaimer INTERPRETING A MINE SUMMARY SHEET
	Unlocated Mines In:	Lawrence unlocated
	County:	Lawrence
	Quadrangle:	Russellville
	County Coal Data:	Lawrence
	Shown On Map:	Yes
	Unlocated:	No
	MSHA ID:

Mine Index Number: 1056

Mine enters from Indiana, only Illinois portion is shown, Indiana ID 802050
Company Name:	Sunrise Coal, LLC
Mine Name:	Oaktown Fuels No. 2 Mine
Start Date:	2012	End Date:	Active
Type of Mine:	Underground
Total acres shown:	1,329 in Illlinois
Acres after map date:		General Area of mining acres shown:

Shaft, Slope, Drift or Tipple Location(s)

Type	County	Township-Range	Section	Part Section

Man shaft

Lawrence

5N-10W

29

NW SW SE

Geology

		Thickness (ft)
Seam	Depth (ft)	Min	Max	Ave	Mining Method

Springfield

452

4.0-7.0

CRP

Geological Problems Reported

Geologic problems not reported for active mines.

Production

Company

Mine Name

Date

Production (tons)

Black Panther Mining (add)	Oaktown Fuels (add)	2012-2013	unknown^[1]

Sunrise Coal, LLC (add)	Oaktown Fuels No. 2 (add)	2014-	3,434,215^[2]
Total Production: 3,434,215^[2]

Production Notes

Coal Report production (if available)

Sources of Data

Company, 6-489d

2-18-2022

1:6000

Not final

Annotated Bibliography (Data source - brief description of information)

Coal Reports - Production, ownership, years of operation, seam, depth, thickness.

Company map, Coal Section files, 6-489d - Shaft location, mine outline, mining method.

Mine Notes

Mine Images

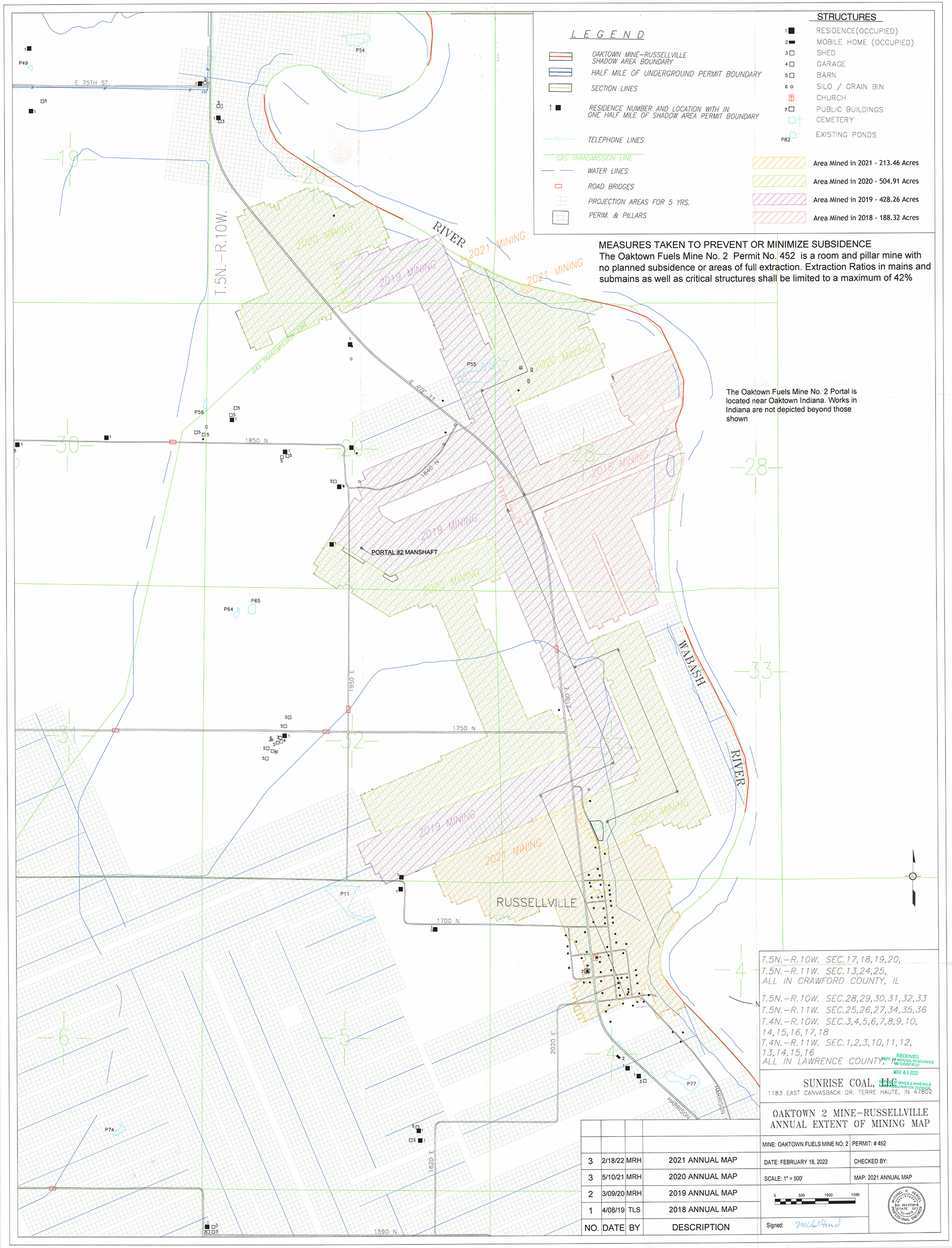

These files may not be true to scale and are not georgistered.	Map Type:	Company
	Map ID:	6-489D
	Company:	Sunrise Coal, LLC
	Mine Name:	Oaktown Fuels No. 2
	Caption:	2021 Annual Map, Illinois portion only
	Map Date:	02-18-2022
	Map Status:	Not Final
	Image Credit:
	Note:
	More Info:	M1056 2022
	Full Res Download:These files are true to scale and most are georegistered for gis software. These files may be a very large (>1GB) download!	https://wikiimage.isgs.illinois.edu/ilmines/Lawrence/6-489d-m1056 oaktown 2 2022.zip

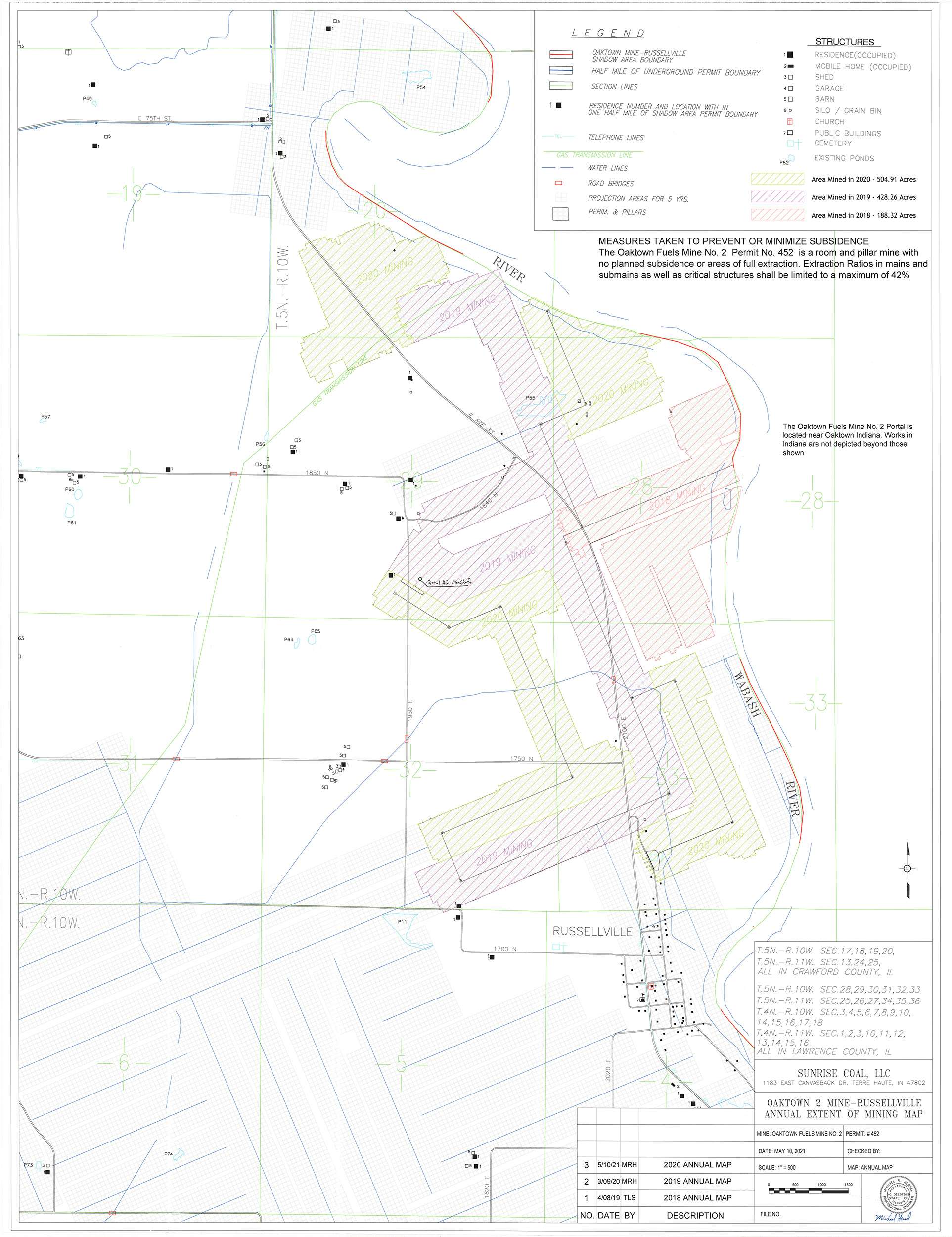

These files may not be true to scale and are not georgistered.	Map Type:	Company
	Map ID:	6-489C
	Company:	Sunrise Coal, LLC
	Mine Name:	Oaktown Fuels No. 2
	Caption:	2020 Annual Map, Illinois portion only
	Map Date:	05/10/2021
	Map Status:	Not Final
	Image Credit:
	Note:	Not georegistered
	More Info:	M1056 2021
	Full Res Download:These files are true to scale and most are georegistered for gis software. These files may be a very large (>1GB) download!	https://wikiimage.isgs.illinois.edu/ilmines/Lawrence/6-489c-m1056 oaktown 2 2021.jpg

These files may not be true to scale and are not georgistered.	Map Type:	Company
	Map ID:	6-489B
	Company:	Sunrise Coal, LLC
	Mine Name:	Oaktown Fuels No. 2
	Caption:	2019 Annual Map, Illinois portion only
	Map Date:	03/09/2020
	Map Status:	Not Final
	Image Credit:
	Note:	Not georegistered
	More Info:	M1056 2020
	Full Res Download:These files are true to scale and most are georegistered for gis software. These files may be a very large (>1GB) download!	https://wikiimage.isgs.illinois.edu/ilmines/Lawrence/6-489b-m1056 oaktown 2 2020.jpg

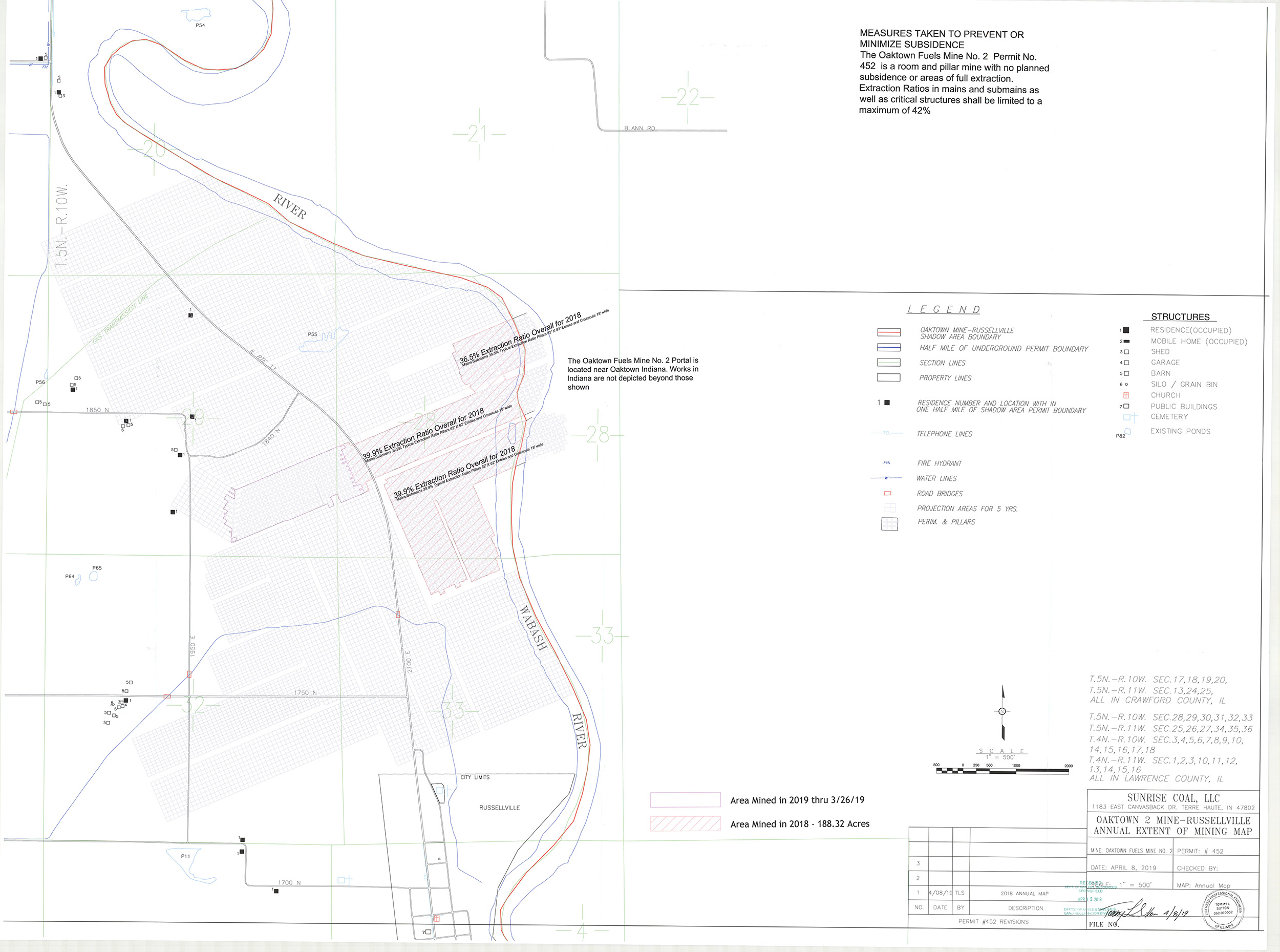

These files may not be true to scale and are not georgistered.	Map Type:	Company
	Map ID:	6-489A
	Company:	Sunrise Coal, LLC
	Mine Name:	Oaktown Fuels No. 2
	Caption:	2018 Annual Map, Illinois portion only
	Map Date:	04/18/2019
	Map Status:	Not Final
	Image Credit:
	Note:	Not georegistered
	More Info:	M1056 2019
	Full Res Download:These files are true to scale and most are georegistered for gis software. These files may be a very large (>1GB) download!	https://wikiimage.isgs.illinois.edu/ilmines/Lawrence/6-489a-m1056 oaktown 2 2019.jpg

Photographs

Notes

↑ Production in Indiana unknown.
↑ Mining in Illinois did not begin until 2018. Production was not listed in the Coal Report until 2021. Production includes tonnage through 2022, the latest available Coal Report.

Additional Notes

INDIANA MINE NUMBER 802050

[1] Production in Indiana unknown.

[2] Mining in Illinois did not begin until 2018. Production was not listed in the Coal Report until 2021. Production includes tonnage through 2022, the latest available Coal Report.
