Mine Index Number: 3619
Accessible description: Mine Name and Data Summary
| Company Name:
|
New West Side Coal Company
|
| Mine Name:
|
West Side Mine
|
| Start Date:
|
1933
|
End Date:
|
April 1955
|
| Type of Mine:
|
Underground
|
| Total acres shown:
|
215
|
| Acres after map date:
|
|
General Area of mining acres shown:
|
|
|
|
Shaft, Slope, Drift or Tipple Location(s)
| Type
|
County
|
Township-Range
|
Section
|
Part Section
|
| Shaft Type |
County |
Township-Range |
Section |
Part Section
|
| Main shaft
|
St. Clair
|
3S 6W
|
21
|
SE SE SE
|
| Shaft Type |
County |
Township-Range |
Section |
Part Section
|
| Air shaft
|
St. Clair
|
3S 6W
|
21
|
SE SE SE
|
Geology
| Seam |
Depth (ft) |
Thickness Min |
Thickness max |
Thickness Ave. |
Mining Method
|
| Herrin
|
90
|
|
|
6.5
|
MRP
|
Geological Problems Reported
Production
| Company
|
Mine Name
|
Date
|
Production (tons)
|
| Company |
Mine Name |
Date |
Production (tons)
|
|
|
|
|
|
| Total Production: 1,224,998
|
Production Notes
Coal Report production (if available)
Sources of Data
| Source Map |
Map Date |
Original Scale |
Digitized Scale |
Map Type
|
| Microfilm, document 351174
|
1-17-1956
|
1:2400
|
1:4634
|
Final
|
| Bibliography
|
| Coal Reports - Production, ownership, years of operation.
|
| Bibliography
|
| Directory of Illinois Coal Mines (St. Clair County) - Mine names, mine index, ownership, years of operation.
|
| Bibliography
|
| Mine notes (St. Clair County) - Mine type, shaft location, seam, depth, thickness, abandonment date.
|
| Bibliography
|
| Microfilm map, document 351174, reel 03134, frame 320 - Shaft locations, mine outline, mining method.
|
Mine Notes
Mine Images

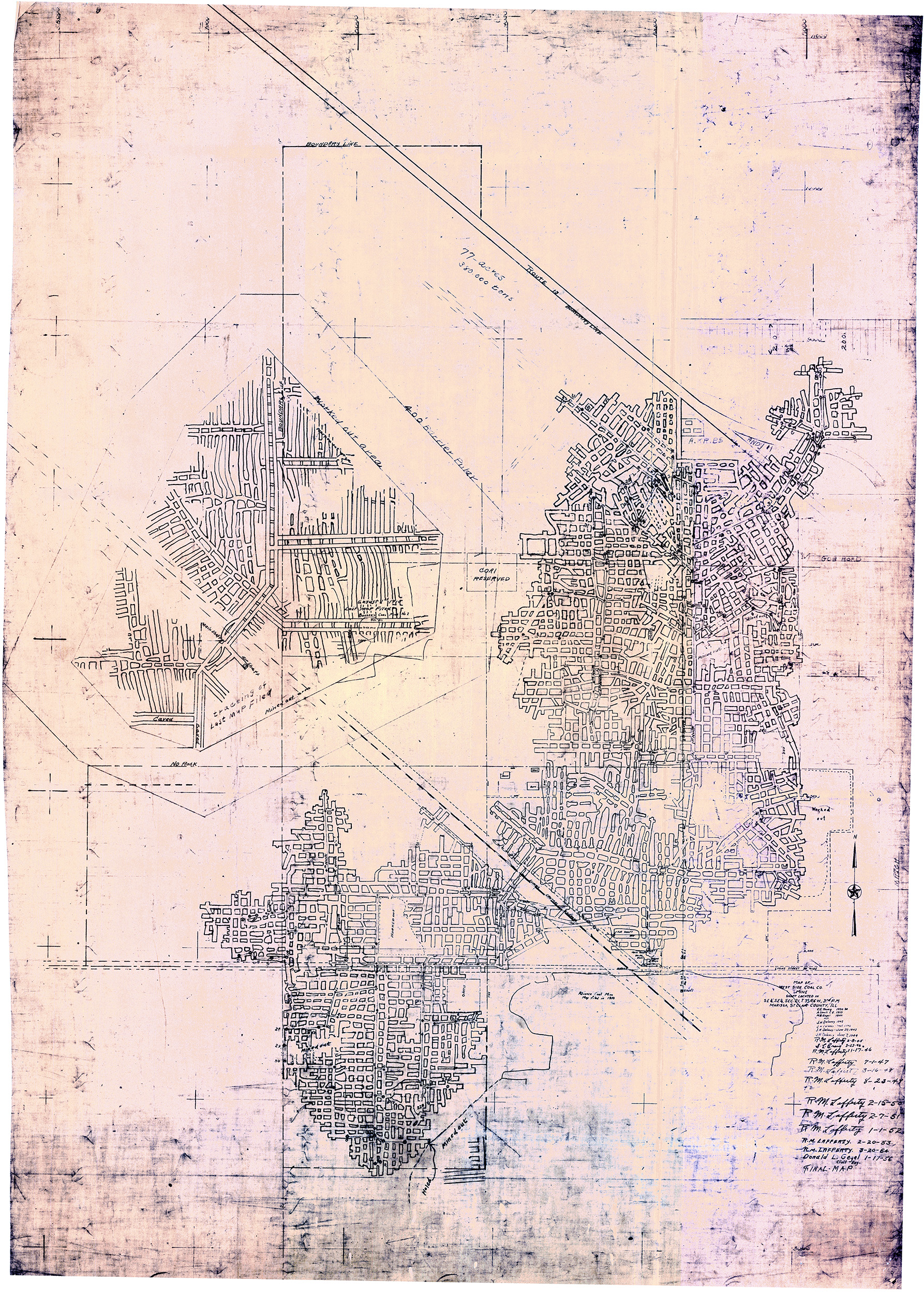

Mine Map: IL_108_01
 These files may not be true to scale and are not georgistered.
|
Map Type:
|
State Archive
|
| Map ID:
|
IL_108_01
|
| Company:
|
|
| Mine Name:
|
|
| Caption:
|
|
| Map Date:
|
1-17-1956
|
| Map Status:
|
Final
|
| Image Credit:
|
|
| Note:
|
Final Map for Mine index 3619
Secondary Source for Mine Index 3620
Secondary Source for Mine Index 3624
|
| More Info:
|
M3619 IL 108 01
|
| Full Res Download:These files are true to scale and most are georegistered for gis software. These files may be a very large (>1GB) download!
|
https://wikiimage.isgs.illinois.edu/ilmines/st clair/m3619 IL 108 01.zip
|
